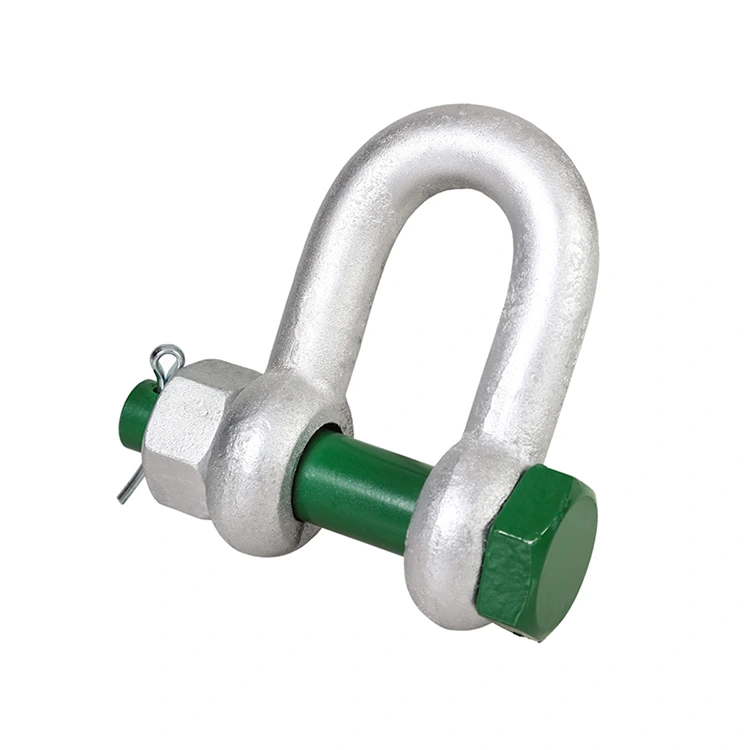

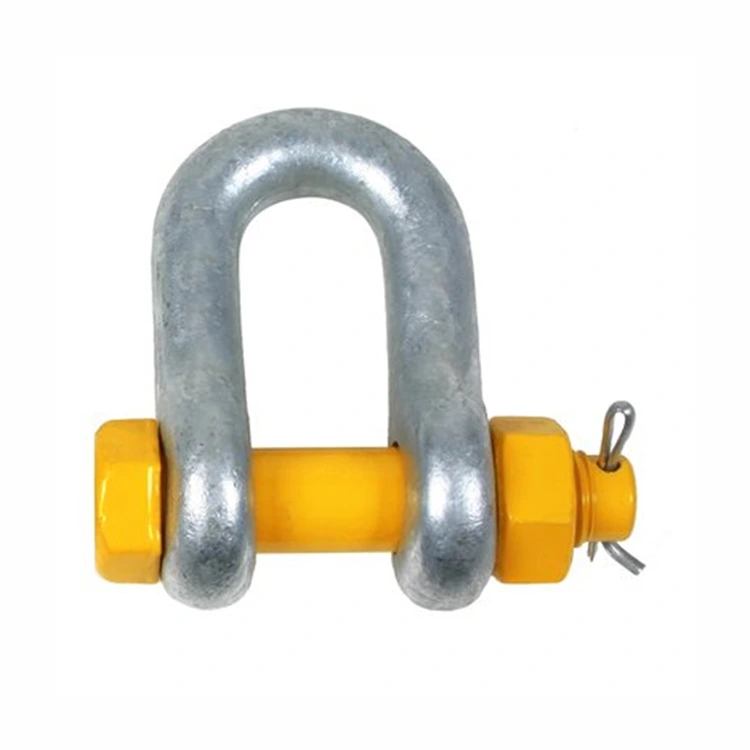

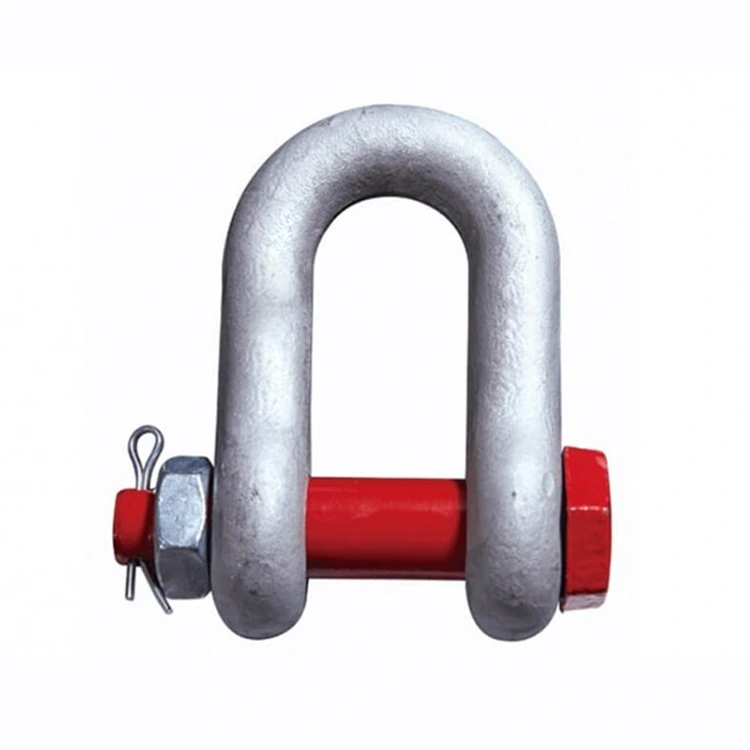

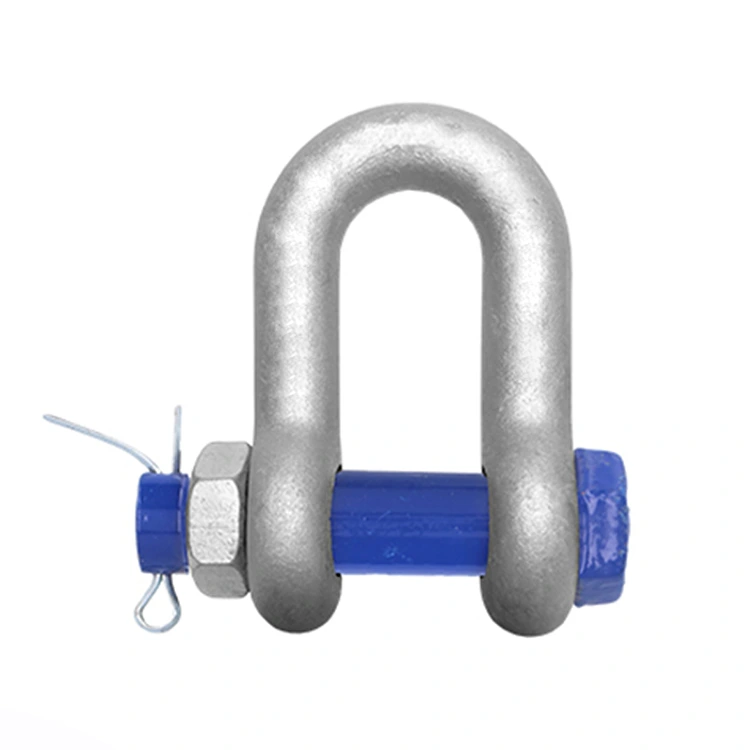

Dea Shackle G2150

Andy Marine Deae Shackle G2150 varias magnitudinum offert. Dea Shackle G2150 in applicationibus adhiberi potest, ubi rotundi acus vel cochleae acus compedes adhibentur. Sed compeda G2150 melior est electio in applicationibus permanentibus vel diuturnis, vel si periculum est oneris illapsum in vincla clavum, ut moveatur. Si Deam Shackle G2150 requiris, pete nobis.

Mitte Inquisitionem

depictio producti

Dea Shackle G2150 robustum, fulmen-typum ligamentum praesertim ad diuturnum vel permanentem adhibita levatione et armamentis applicationibus quae lineam rectam oneraturam involvunt. Consilium, quo clauo, nuce, et clavo cotter utitur, clavum prohibet, ne forte revolvatur vel solvatur, et tutius fiat quam cochleae dica ad usum permanentem vel in ambitus vibrationis magnos.

Rigging Hardware Factory Factory Forging Products - Deae Shackle G2150

• Material: Corpus 45 # Carbon Ferro, Pin 40Cr Alloy Steel

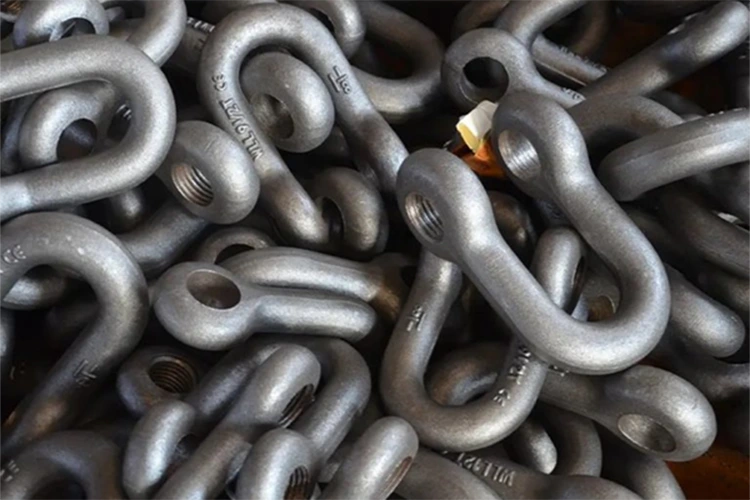

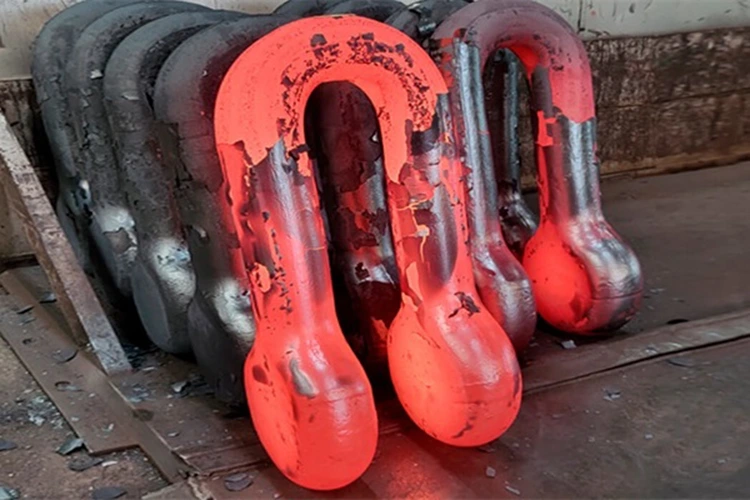

• Technology: Occumbo Forged

• Superficies Perfice: Electro Galvanized, Hot Dip Galvanized, Dacromet, Pulvis Coated

• Ultima Lond: 4 Tempora Aut 6 Tempora WLL

• Calor curatio: VI tempora

• Monitum: numquam excedere Working Lond Limit

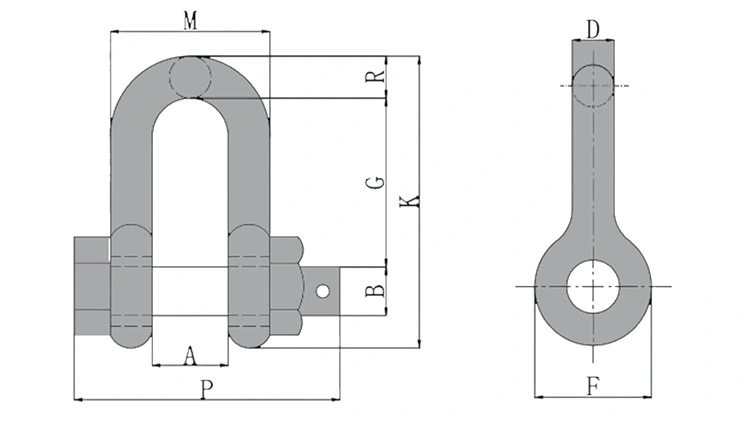

Dea Shackle G2150 Size

Magnitudo (in)	WLL (t)	Dimensiones (in)									Pondus (li)
Magnitudo (in)	WLL (t)	A	B	D	F	G	K	M	P	R	Pondus (li)
1/4	1/2	0.47	0.31	0.25	0.62	0.91	1.59	0.97	1.56	0.25	0.13
5/16	3/4	0.53	0.38	0.31	0.75	1.07	1.91	1.15	1.82	0.31	0.23
3/8	1	0.66	0.44	0.38	0.92	1.28	2.31	1.42	2.17	0.38	0.33
7/16	1-1/2	0.75	0.50	0.44	1.06	1.48	2.67	1.63	2.51	0.44	0.49
1/2	2	0.81	0.64	0.50	1.18	1.66	3.03	1.81	2.80	0.50	0.75
5/8	3-1/4	1.06	0.77	0.63	1.50	2.04	3.76	2.32	3.56	0.63	1.47
3/4	4-3/4	1.25	0.89	0.75	1.81	2.40	4.53	2.75	4.15	0.81	2.52
7/8	6-1/2	1.44	1.02	0.88	2.10	2.86	5.33	3.20	4.82	0.97	3.85
1	8-1/2	1.69	1.15	1.00	2.38	3.24	5.94	3.69	5.39	1.00	5.55
1-1/8	9-1/2	1.81	1.25	1.13	2.68	3.61	6.78	4.07	5.90	1.25	7.60
1-1/4	12	2.03	1.40	1.25	3.00	3.97	7.50	4.53	6.69	1.38	10.81
1-3/8	13-1/2	2.25	1.53	1.38	3.31	4.43	8.28	5.01	7.21	1.50	13.75
1-1/2	17	2.38	1.66	1.50	3.62	4.87	9.05	5.38	7.73	1.62	18.50
1-3/4	25	2.88	2.04	1.75	4.19	5.82	10.97	6.38	9.33	2.21	31.40
2	35	3.25	2.30	2.10	5.00	6.82	12.74	7.25	10.41	2.36	46.75
2-1/2	55	4.12	2.80	2.63	5.68	8.07	14.85	9.38	13.58	2.63	85.00
3	85	5.00	3.25	3.00	6.50	8.56	16.87	11.00	15.13	3.50	124.25

Applicationem Deae Shackle G2150

Elevatio et levatio;Punctum vitale, securum nexus inservit pro gribus, spartibus, aliisve instrumentis elevatis ad onera gravia in locis constructionibus, officinis et horreis.

Marine et Suboles:In ambitus aquae salsae, proprietates eius corrosio-resistentes (typice calvanizatae vel immaculatae ferro calido-tinguentes) aptam faciunt applicationibus ut ancorae, retinae, et varia armamenta coniuncta in navibus et suggestis litorum.

Mining and Quarrying:Usus est ad tractandas et levandas materias graves et magnas machinas partes in conditionibus exigendis.

Construction and Engineering:Solebant connectere apparatum elevatum ad componentes structurales sicut trabes ferreas durante institutione vel sustentatione facultatum, incluso infrastructura machinalis potentiae.

Tensio Systems:Specimen pro aggeribus tensionis et tensionis terminationes sistendi ob firmam eius designationem quae static onera certo tractat.
