Dea Shackle G210/G215

Andy Marine Deae Shackle G210/G215 variae magnitudinis praebet. Dea Shackle G210/G215 optimum est ad remulco, recuperatio et Crispi applicationes, sic etiam in industria notum est ut ligatura, ligamen, ligamentum, vel stuppa ligamentum. Si Deam Shackle G210/G215 requiris, pete, pete.

Mitte Inquisitionem

depictio producti

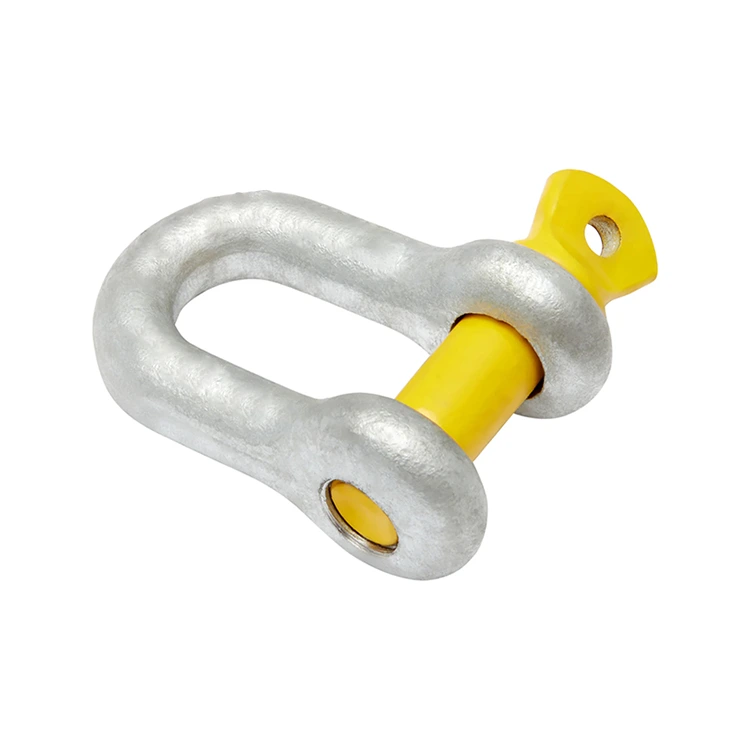

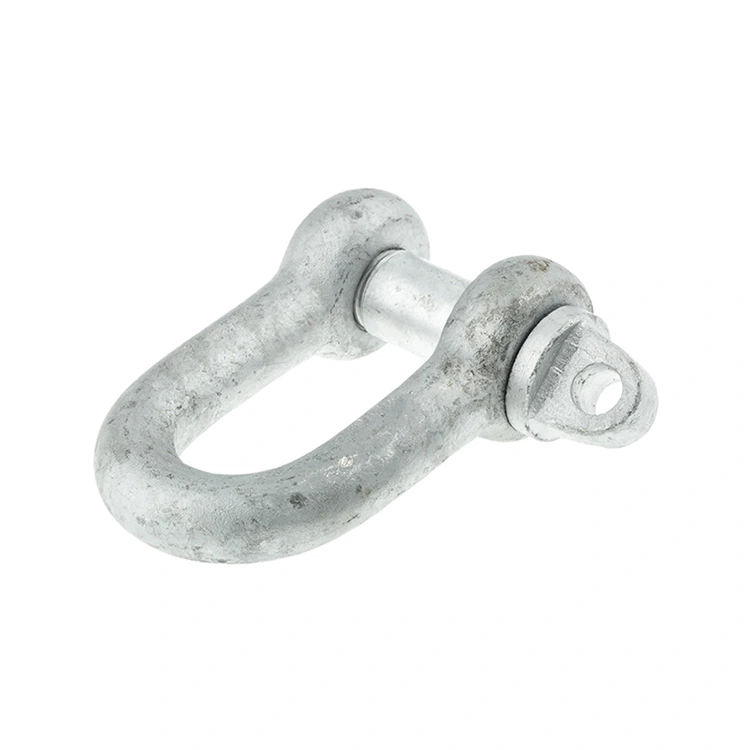

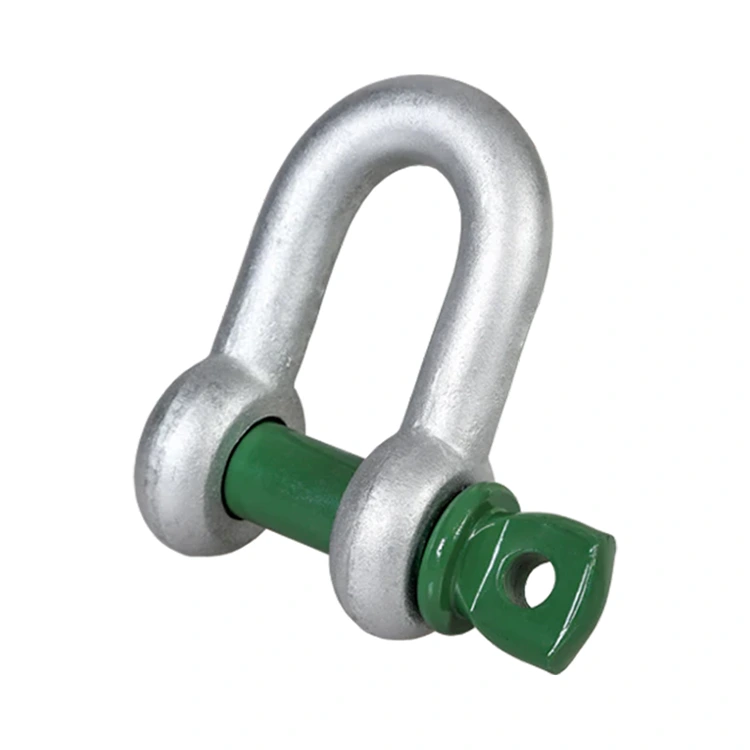

Dea Shackle G210/G215, interdum ut D compes vel D-anulus compedes notae sunt, inter caerimonias maxime adhibendas in levandis, armamentis, towing, et marinis applicationibus. A propria figura distincta "D", parva haec elementa adhuc essentialia securam nexum praebent inter vincula, funes, fundas et alia ferramenta. Gravis est meminisse D anulum compedibus intentum esse ad lineam rectam trahens ut latus trahere possit vel D informibus compedes detorquere vel flectere.

Rigging Hardware Factory Factory Forging Products - Deae Shackle G210/G215

• Material: Corpus 45 # Carbon Ferro, Pin 40Cr Alloy Steel

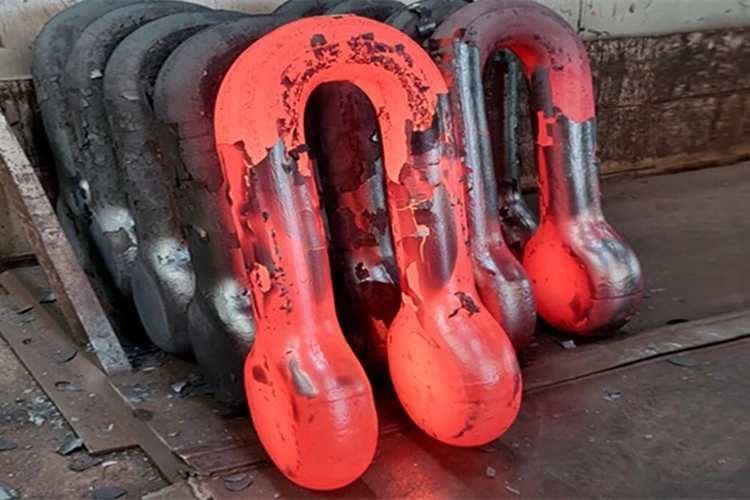

• Technology: Occumbo Forged

• Superficies Perfice: Electro Galvanized, Hot Dip Galvanized, Dacromet, Pulvis Coated

• Ultima Lond: 4 Tempora Aut 6 Tempora WLL

• Calor curatio: VI tempora

• Monitum: numquam excedere Working Lond Limit

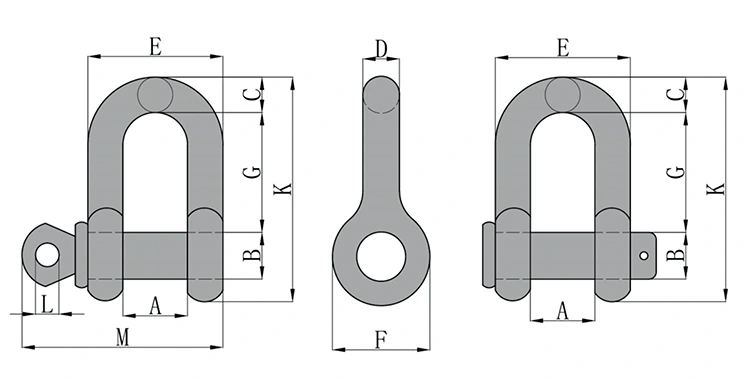

Dea Shackle G210/G215 Size

Magnitudo (in)	WLL (t)	Dimensiones (in)										Pondus (li)
Magnitudo (in)	WLL (t)	A	B	C	D	E	F	G	K	L	M	G-210 S-210	G-215 S-215
1/4	1/2	0.47	0.31	0.25	0.25	0.97	0.62	0.97	1.59	0.19	1.43	0.11	0.10
5/16	3/4	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	0.22	1.71	0.17	0.18
3/8	1	0.66	0.44	0.38	0.38	1.42	0.92	1.28	2.31	0.25	2.02	0.24	0.25
7/16	1-1/2	0.75	0.50	0.44	0.44	1.63	1.06	1.48	2.67	0.31	2.37	0.40	0.40
1/2	2	0.81	0.63	0.50	0.50	1.81	1.18	1.66	3.03	0.38	2.69	0.59	0.50
5/8	3-1/4	1.06	0.75	0.62	0.63	2.32	1.50	2.04	3.76	0.44	3.34	1.21	1.21
3/4	4-3/4	1.25	0.88	0.81	0.75	2.75	1.81	2.40	4.53	0.50	3.97	2.25	2.00
7/8	6-1/2	1.44	1.00	0.97	0.88	3.20	2.10	2.86	5.33	0.50	4.50	3.16	3.28
1	8-1/2	1.69	1.13	1.00	1.00	3.69	2.38	3.24	5.94	0.56	5.13	4.75	4.75
1-1/8	9-1/2	1.81	1.25	1.25	1.13	4.07	2.69	3.61	6.78	0.63	5.71	6.75	6.30
1-1/4	12	2.03	1.38	1.38	1.25	4.53	3.00	3.97	7.50	0.69	6.25	9.06	9.00
1-3/8	13-1/2	2.25	1.50	1.50	1.38	5.01	3.31	4.43	8.28	0.75	6.53	11.63	12.00
1-1/2	17	2.38	1.62	1.62	1.50	5.38	3.62	4.87	9.05	0.81	7.33	15.95	16.15
1-3/4	25	2.88	2.12	2.12	1.75	6.38	4.19	5.78	10.97	1.00	9.06	26.75	29.96
2	35	3.25	2.00	2.00	2.00	7.25	5.00	6.77	12.74	1.22	10.35	42.31	43.25
2-1/2	55	4.12	2.62	2.63	2.63	9.38	5.68	8.07	14.85	1.38	13.00	71.75	-

Applicatio Deae Shackle G210/G215

Extollens remosque;Deae compedes G210/G215 praecipuae sunt componentes in systematibus tollendis, securam nexum praebentes inter apparatum elevatum (veluti grues vel spartum) et onus vel armamenta alia ut fundis et catenis.

Towing et Recuperatio:Communiter adhibentur tam validi et certae caritatis puncta ad remulco vehicula, winching, et alia necessitates recreationis.

Marinus et Industrial Usus:Deae compedes G210/G215 late adhibentur in asperis ambitibus, inclusis applicationibus marinis, constructione, fodiendis, fabricandis, praesertim cum calvanizata vel immaculata ferro ignito-tincta finiuntur ad resistendum corrosioni.

Systema Staticum:Possunt etiam in systematibus staticis adhibiti ut validam ac temporariam vel permanentem nexum inter componentes praebeant.
