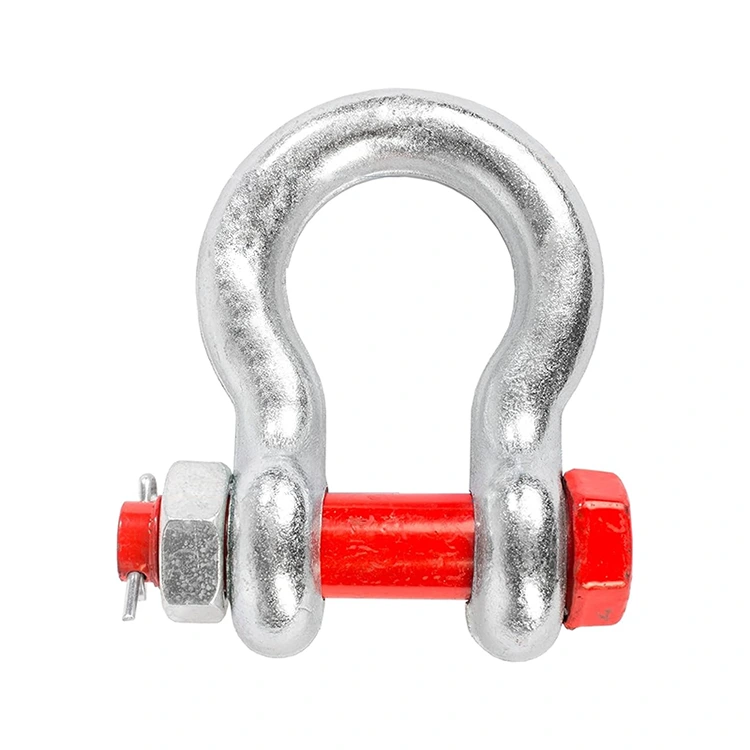

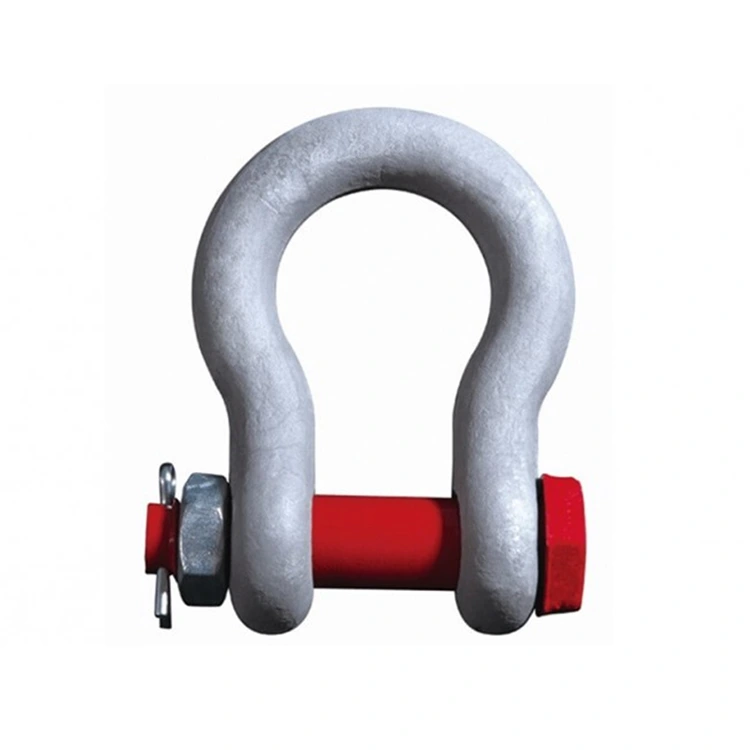

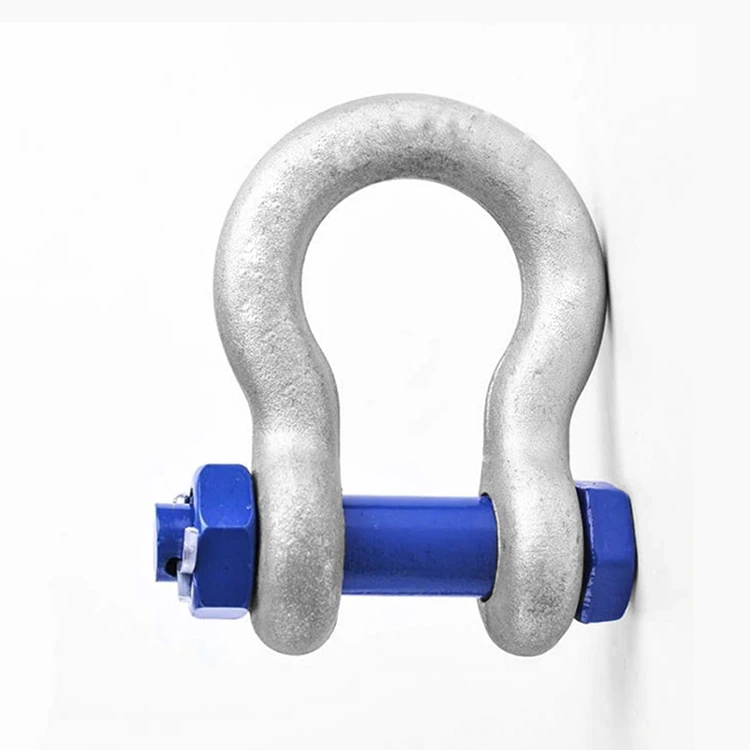

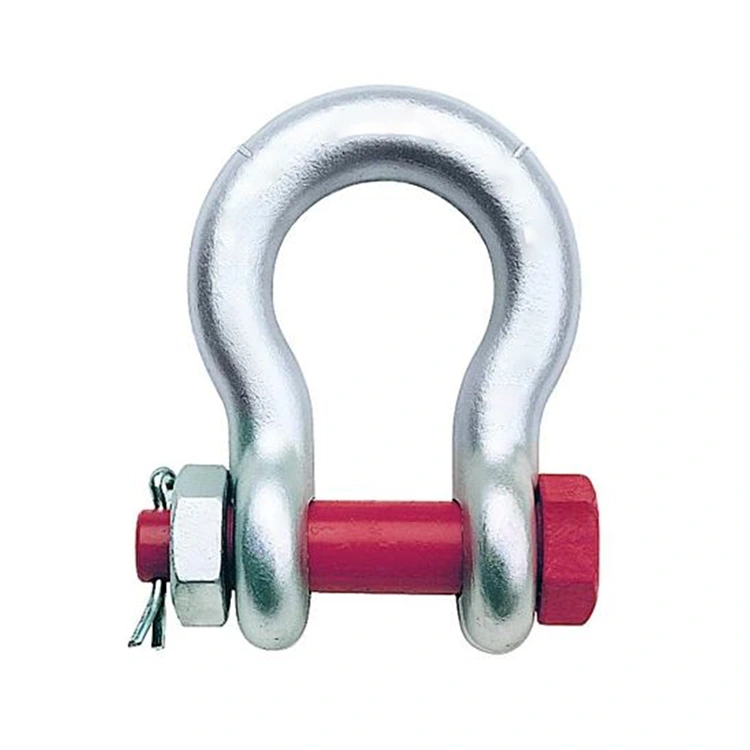

Arcum Shackle G2130

Andy Marine praebet ligamen arcus G2130 variae magnitudinis. Arcus ligamen G2130 est validum, genus ancorae ligaturae ad usus amplis applicationes levandi, armamenta et secures connexionis, praesertim in condicionibus quaerunt nexum securum, diuturnum vel semi-perpetuum, ubi clavus gyrari non debet. Si arcum ligaturam requiris G2130, pete nobis.

Mitte Inquisitionem

depictio producti

Hi arcus compede clavum designant tutissimum. Hasce fulmen compedes elige cum clavum clavum difficile est frequenter inspicere, applicationes typice permanenter armatas. Unitas quaelibet probata, fatigatio aestimata est, et structa est industriae signa ad robur, constantiam, et perdabilitatem excedens.

Rigging Hardware Factory Factory Forging Products - Inclina Shackle G2130

• Material: Corpus 45 # Carbon Ferro, Pin 40Cr Alloy Steel

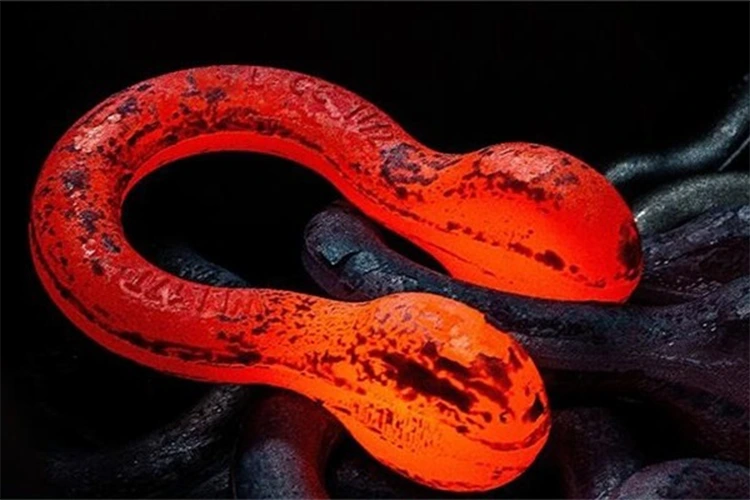

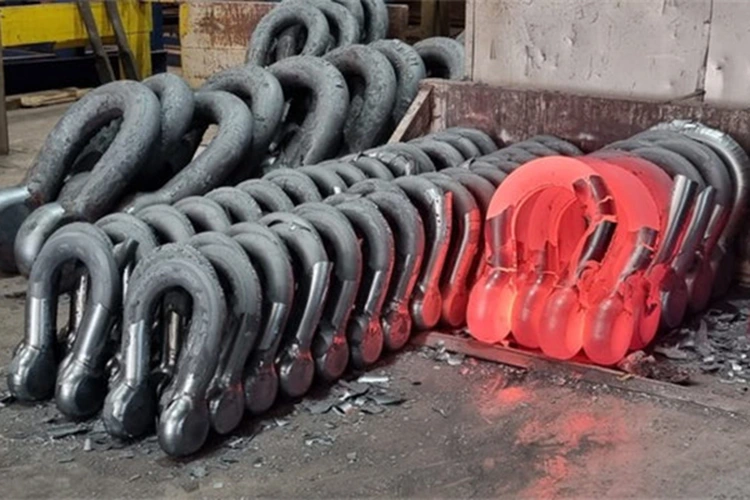

• Technology: Occumbo Forged

• Superficies Perfice: Electro Galvanized, Hot Dip Galvanized, Dacromet, Pulvis Coated

• Ultima Lond: 4 Tempora Aut 6 Tempora WLL

• Calor curatio: VI tempora

• Monitum: numquam excedere Working Lond Limit

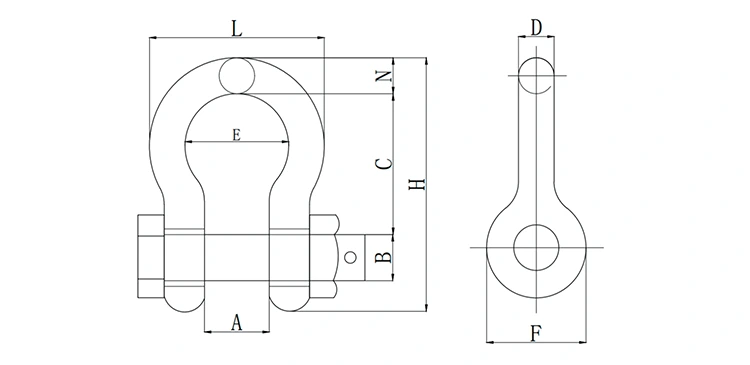

Arcum Shackle G2130 Size

Magnitudo (in)	WLL (t)	Dimensiones (in)										Pondus (li)
Magnitudo (in)	WLL (t)	A	B	C	D	E	F	H	L	N	P	Pondus (li)
3/16	1/3	0.38	0.25	0.88	0.19	0.60	0.56	1.47	0.98	0.19	1.29	0.06
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	1.56	0.17
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	1.82	0.22
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	2.17	0.33
7/16	1-1/2	0.75	0.50	1.69	0.44	1.16	1.06	2.91	2.03	0.44	2.51	0.49
1/2	2	0.81	0.63	1.88	0.50	1.31	1.19	3.28	2.31	0.50	2.80	0.79
5/8	3-1/4	1.06	0.75	2.38	0.63	1.69	1.50	4.19	2.94	0.69	3.53	1.68
3/4	4-3/4	1.25	0.88	2.81	0.75	2.00	1.81	4.97	3.50	0.81	4.07	2.72
7/8	6-1/2	1.44	1.00	3.31	0.88	2.28	2.09	5.83	4.03	0.97	4.71	3.95
1	8-1/2	1.69	1.13	3.75	1.00	2.69	2.38	6.56	4.96	1.06	5.31	6.12
1-1/8	9-1/2	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	5.09	8.27
1-1/4	12	2.03	1.38	4.69	1.25	3.25	3.00	8.25	5.75	1.38	6.51	11.71
1-3/8	13-1/2	2.25	1.50	5.25	1.38	3.63	3.31	9.16	6.38	1.50	7.21	15.83
1-1/2	17	2.38	1.63	5.75	1.50	3.88	3.63	10.00	6.88	1.62	7.73	20.80
1-3/4	25	2.88	2.00	7.00	1.75	5.00	4.19	12.34	8.86	2.25	9.05	33.91
2	35	3.25	2.30	7.75	2.08	5.75	4.81	13.68	10.15	2.40	10.41	52.25
2-1/2	55	4.13	2.80	10.50	2.71	7.25	5.69	17.90	12.75	3.13	13.56	98.25
3	85	5.00	3.30	13.00	3.12	7.88	6.50	21.50	14.62	3.62	16.50	154.00
3-1/2	120	5.25	3.76	14.63	3.62	9.00	8.00	24.88	17.02	4.38	19.00	265.00
4	150	5.50	4.26	14.50	4.00	10.00	9.00	25.68	18.00	4.56	19.75	338.00

Applicationem arcus Shackle G2130

Permanens vel Long-Term Installations:Enixe commendatur applicationes quae firmam et diuturnam connexionem requirunt.

Plures funda Leg Connectiones:Figura "arcus" eius permittit ut onera e variis directionibus accommodare et ad systemata multi- crus sine periculo constitutionum lateralium onerantium communes cum D-conpedis aptas est.

Parte-Loading Applications:Dissimiles multae aliae dicaculorum genera, consilium arcus et paxillus acus firmae ad circumstantias onerandas laterales sunt aptae.

Gravis Industrial Usus:Late adhibetur per industrias postulantes ut navitas sector, constructio, fodienda, et operationes marinae/translationes propter vim et corrosionem resistentiae (quando calvanizatae calidae tingunt).
