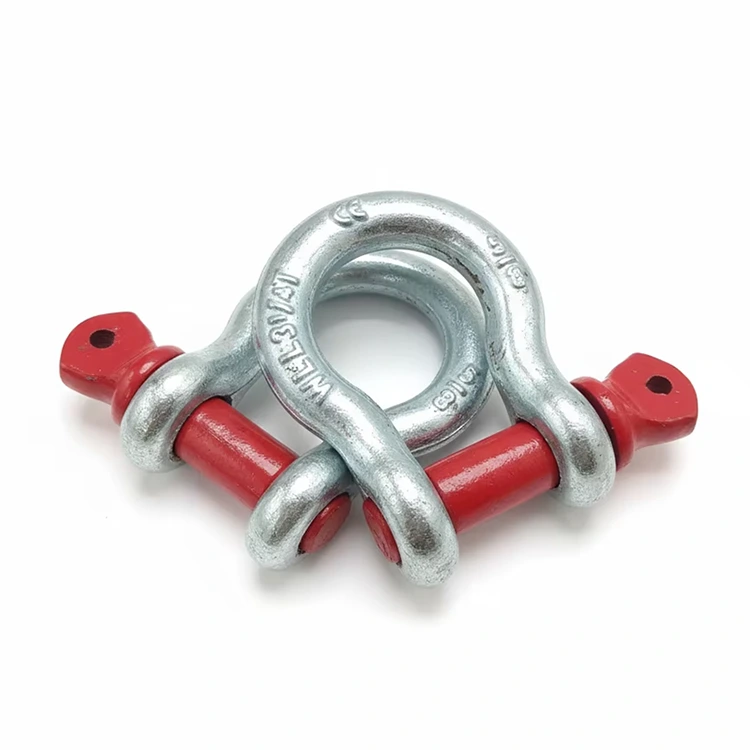

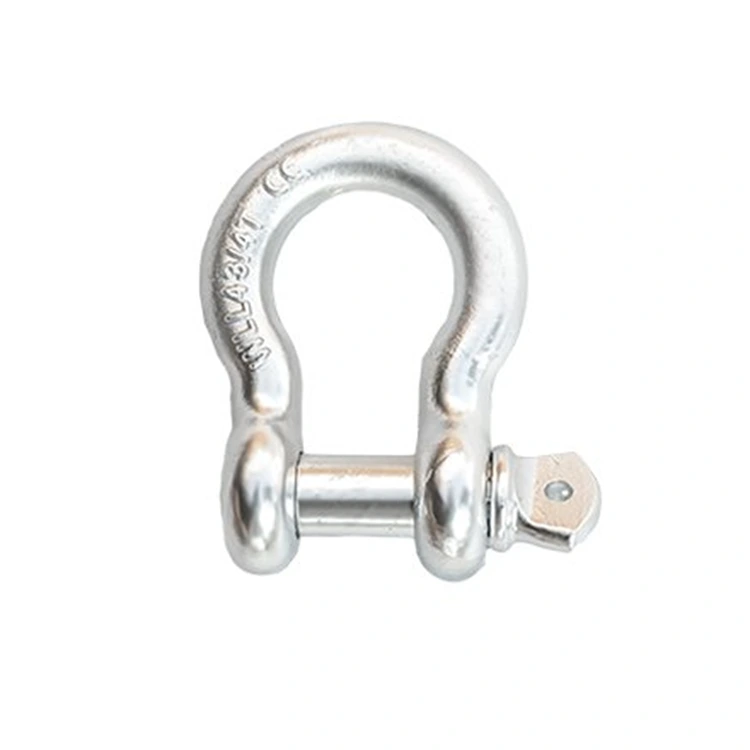

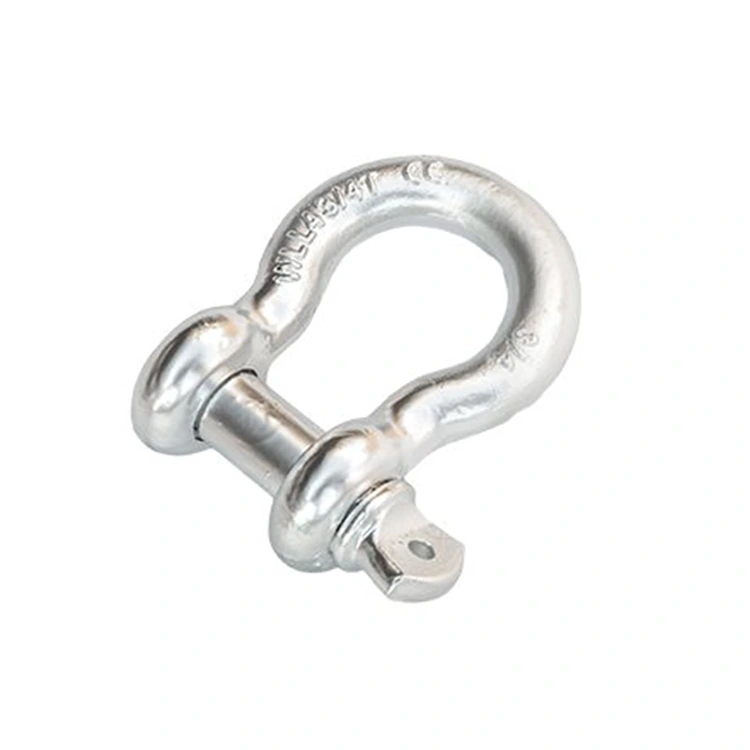

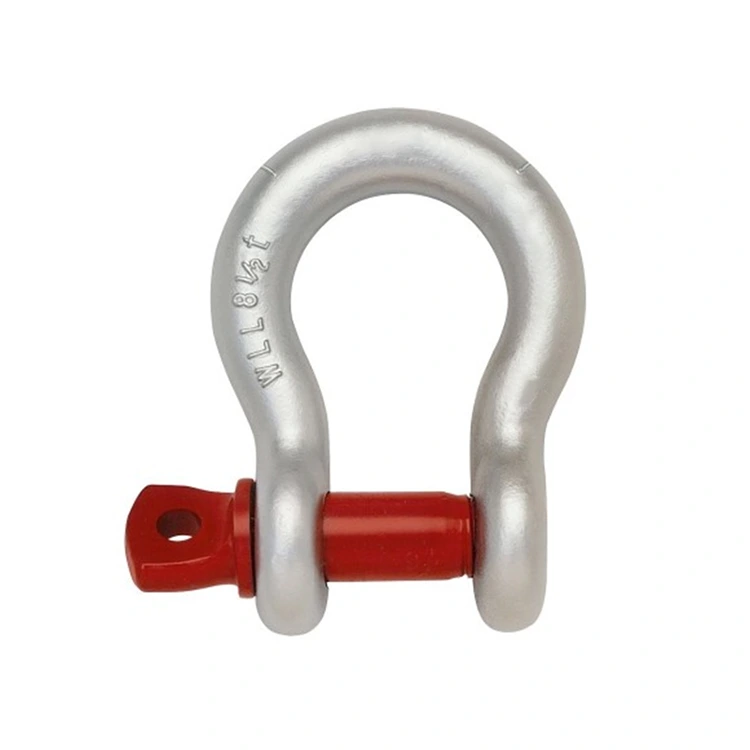

Arcum Shackle G209/G213

Andy Marine varias praebet magnitudinum vinculorum arcus G209/G213 ut diversis oneris requisitis occurrat. Utrum mini compede ad leves applicationes indigeas, vel magna ad gravem sublationem ligamen, amplitudo tibi est. Si ligamentum arcus requiris G209/G213, pete nobis.

Mitte Inquisitionem

depictio producti

Arcum Shackle G209/G213 est versatile et essentiale ferramentorum fragmentum in variis armamentis et applicationibus elevatis. Arcus figuram distinctivam notat, quae maius spatium superficiei oneribus praebet. Faciens igitur illud specimen ligandi funes, catenas, aliaque componentes elevans. Cochleae acus designatio permittit facilem affectum et amotionem dum secure ligamen obtinet.

Rigging Hardware Factory Factory Forging Products - Inclina Shackle G209/G213

• Material: Corpus 45 # Carbon Ferro, Pin 40Cr Alloy Steel

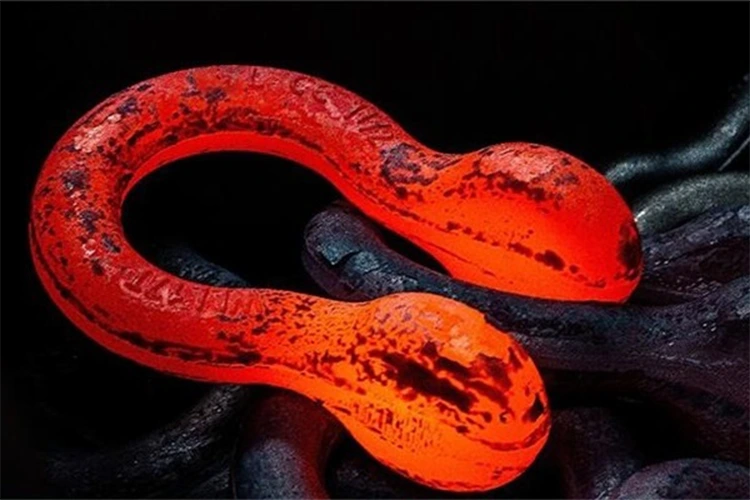

• Technology: Occumbo Forged

• Superficies Perfice: Electro Galvanized, Hot Dip Galvanized, Dacromet, Pulvis Coated

• Ultima Lond: 4 Tempora Aut 6 Tempora WLL

• Calor curatio: VI tempora

• Monitum: numquam excedere Working Lond Limit

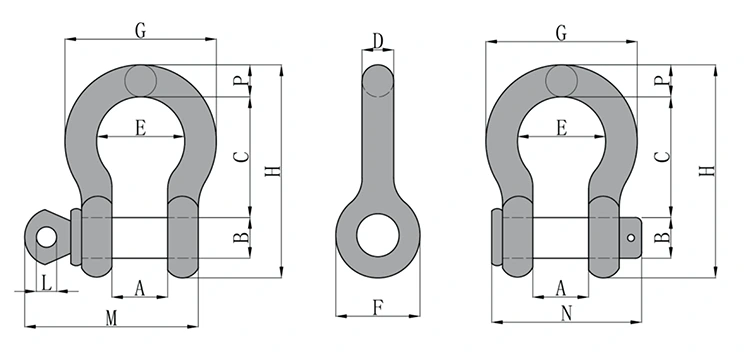

Arcum Shackle G209/G213 Size

Magnitudo (in)	WLL (t)	Dimensiones (in)												Pondus (li)
Magnitudo (in)	WLL (t)	A	B	C	D	E	F	G	H	L	M	N	P	G-209 S-209	G-213 S-213
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	0.19	1.38	1.34	0.25	0.12	0.13
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	0.22	1.66	1.59	0.31	0.19	0.18
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	0.25	2.03	1.86	0.38	0.31	0.29
7/16	1-1/2	0.75	0.50	1.69	0.44	1.16	1.06	2.03	2.91	0.31	2.38	2.13	0.44	0.38	0.38
1/2	2	0.81	0.63	1.88	0.50	1.31	1.19	2.31	3.28	0.38	2.69	2.38	0.50	0.63	0.71
5/8	3-1/4	1.06	0.75	2.38	0.63	1.69	1.50	2.94	4.19	0.44	3.34	2.91	0.69	1.38	1.50
3/4	4-3/4	1.25	0.88	2.81	0.75	2.00	1.81	3.50	4.97	0.50	3.97	3.44	0.81	2.25	2.32
7/8	6-1/2	1.44	1.00	3.31	0.88	2.28	2.09	4.03	5.83	0.50	4.50	3.81	0.97	3.38	3.49
1	8-1/2	1.69	1.13	3.75	1.00	2.69	2.38	4.69	6.56	0.56	5.07	4.53	1.06	5.32	5.00
1-1/8	9-1/2	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	0.63	5.59	5.13	1.25	6.81	6.97
1-1/4	12	2.03	1.38	4.69	1.29	3.25	3.00	5.75	8.25	0.69	6.16	5.50	1.38	9.50	9.75
1-3/8	13-1/2	2.25	1.50	5.25	1.42	3.63	3.31	6.38	9.16	0.75	6.84	6.13	1.50	13.25	13.25
1-1/2	17	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10.00	0.81	7.35	6.50	1.62	17.20	17.25
1-3/4	25	2.88	2.00	7.00	1.84	5.00	4.19	8.86	12.34	1.00	9.08	7.75	2.25	30.38	29.46
2	35	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	1.22	10.34	8.75	2.40	45.00	45.75
2-1/2	55	4.13	2.75	10.5	2.71	7.25	5.69	12.87	17.84	1.38	13.00	-	3.13	85.75	-

Applicatio arcus Shackle G209/G213

Elevans et Operationes laxantes;Arcus vincla G209/G213 vexillum est instrumentum in industria tollens, funiculos filum, catenas, fundas et alia armamenta connectere ad res gravium elevatio tutandas et applicandas.

Multi-pedibus amissis Systems:Ob consilium suum arcum informatum, onera multiplicium directionum sustinere potest quin genera lateralia onera aut clavum rotationis causantes, id efficiens ut specimen iungo vel domini anulum in systematibus multi- pedibus elevatis.

Contrahentes tempus:Arcus ligamen G209/G213 notat clavum linum designans facilem ac celerem institutionem ac disconsionem, faciens id specimen pro temporariis applicationibus crebris iunctio et disiunctio requirens.

Marine and Industrial Environments:Arcus vincla G209/G213 typice calvanizatus est calidus-tingue, praebens repugnantiam optimam corrosionis et aptas condiciones graues in ambitu velit, marino, constructione et industriae ambitus.

Towing et Impetrandum:Communiter etiam adhibentur in remulco vehiculorum, mercium captandorum, vel inceptis suspensionis, punctum nexum tutum et certum praebentes.

Cingebant lato fundas valloque sinusque;Magna area, arcuata, fundas telas latas facile accommodare potest sine compressione vel damno causando.
